Side wall trailers can transport a variety of types of goods, whether they are irregularly shaped and large in size, such as steel, wood, stone, machinery and equipment, or bulk goods, such as coal, sand, grain, etc. They can also be loaded for some extra-long, extra-wide, and extra-high goods within a reasonable range, and there is less obstruction when loading and unloading.
Sidewall trailers are used for medium and long-distance transportation. They can travel on various road conditions and transportation environments, including highways, ordinary roads, and some unpaved roads, etc., and can meet the needs of different transportation distances and transportation tasks.
60 Ton Side Wall Trailer for Sale Near Me In Zimbabwe
60 Ton Side Wall Trailer for Sale Near Me In Zimbabwe
60 Ton Side Wall Trailer for Sale Near Me In Zimbabwe

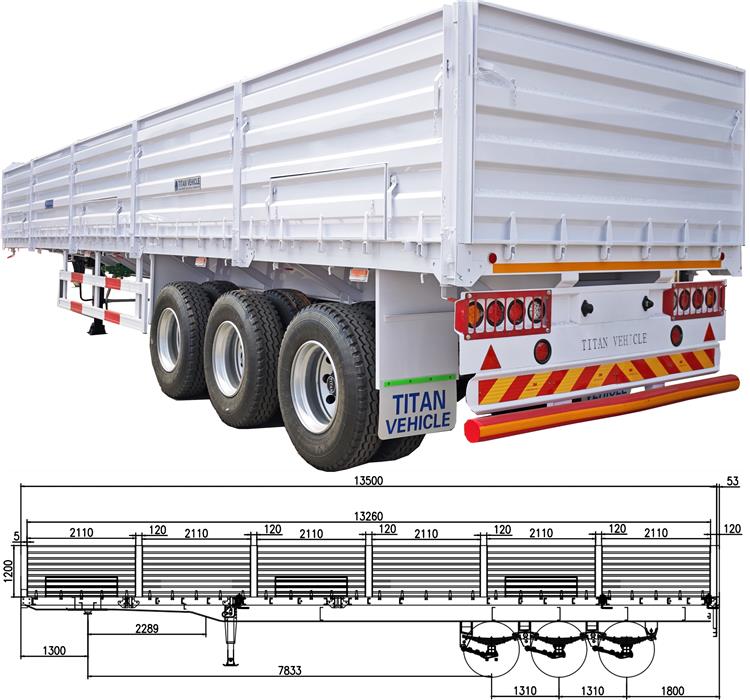

Dimension(mm): 13500mm*2500mm*2350mm

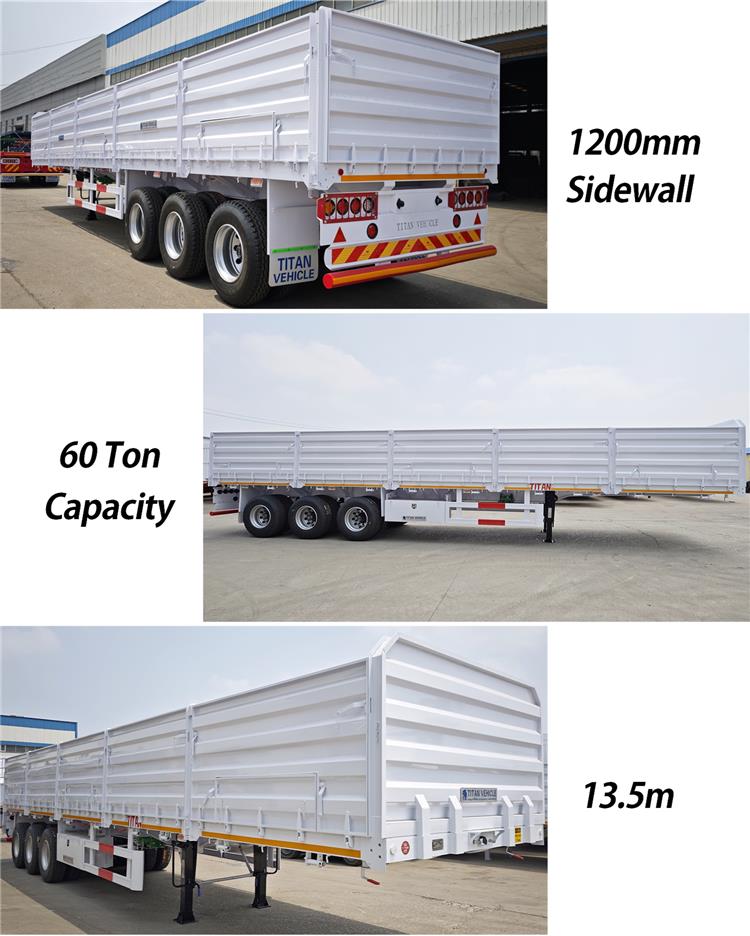

Trailer Sides: 1200mm sidewall
Axles: 3 axles, 16T ,TITAN
Tire: 12 units, 12R22.5
Capacity:60 ton

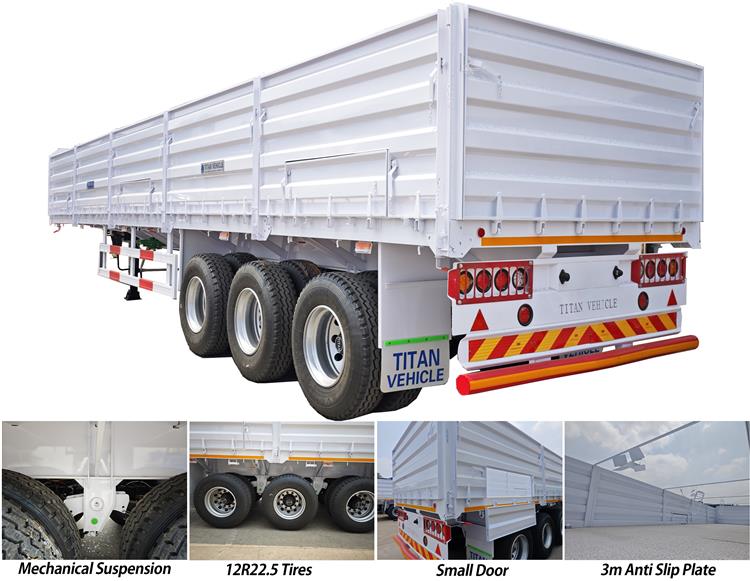

Suspension: Mechanical suspension
King Pin: JOST brand

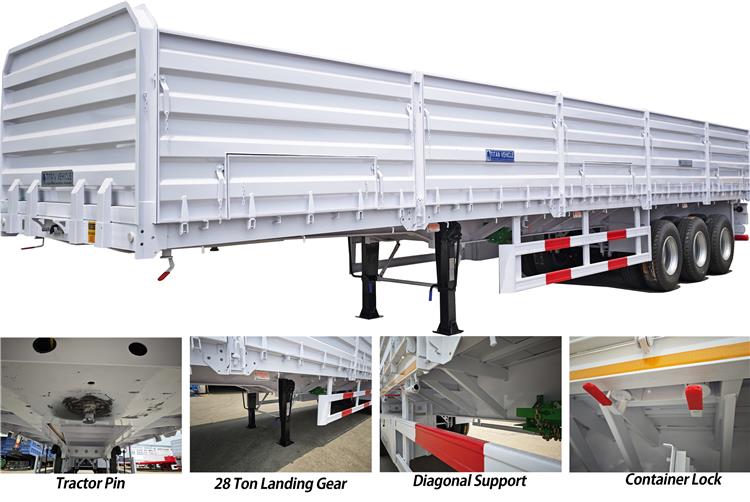

Landing Gear: TITAN brand 28tons(double-speed)
Main Beam:
Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
The side wall trailer uses powder spray paint technology. Before painting, we perform three rust removal and multiple sandblasting treatments on the trailer. The side wall trailer is more beautiful, and the spray paint and paint technology extends the service life of the side wall trailer. The paint will not fall off after 5-8 years of use, preventing the trailer from rusting.
Side wall trailers use Q345 high-strength alloy steel to produce trailers. Its beam is 500mm high and 8mm thick; the upper plate is 14mm thick and the lower bottom plate is 16mm thick. The beam is the core part of the load, and the solid performance of the beam guarantees the service life of the sidewall trailer. The reinforced and thickened beam design can ensure that the steel structure of the sidewall trailer will not be damaged under harsh road conditions when it is heavily loaded.
The welding technology used in the side wall trailer is automatic submerged arc welding technology, which can make the beam welding part without interface and the weld flat, ensure the flatness and integrity of the beam, and prevent the occurrence of open welding when the trailer is heavily loaded. In the gooseneck part of the beam, the side wall trailer uses double vertical plate reinforcement to increase the stability of the beam when transporting heavy objects, prevent the beam from breaking when overloaded, and ensure the load-bearing capacity of the side wall trailer and its service life under harsh road conditions。
The load capacity of the side wall trailer for transporting bulk cargo is 60 tons, but when conducting load tests, we tested concentrated force, and the total force was 75 tons. Even under the concentrated force of 75 tons, the main beam and side beam of the sidewall trailer did not send any bending deformation. This can ensure that the side wall trailer can be used in harsh road conditions for a long time
