The chassis of sinotruk howo a7 6x4 used boom truck for sale in Congo produces is reliable and durable, providing a solid foundation for the overall performance of Sinotruk howo second hand crane trucks for sale. Sinotruk howo boom trucks for sale near me can maintain better stability and reliability during long-term use, reduce the probability of failure, and reduce maintenance costs and use risks.
The power system of the heavy truck chassis is usually relatively strong, which can provide sufficient power support for the lifting operation of the sinotruk howo a7 6x4 used boom truck for sale in Congo. Whether on urban roads or in complex site environments, it is easy to cope with a variety of road conditions to ensure the normal running of sinotruk howo a7 6x4 used boom truck for sale in Congo and the smooth progress of lifting operations. And its chassis carrying capacity is strong, can withstand the weight of the crane and goods, to ensure the safety and stability of the vehicle.

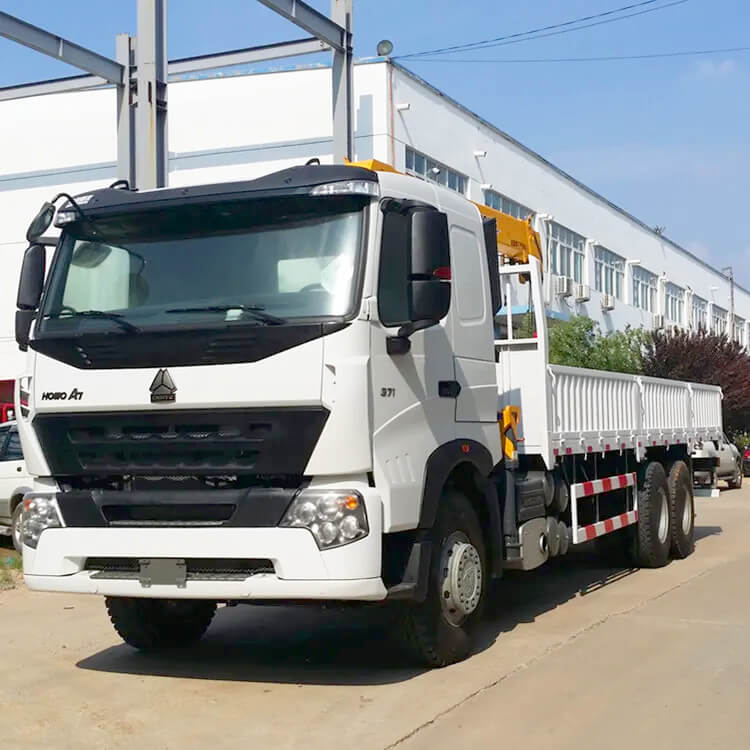

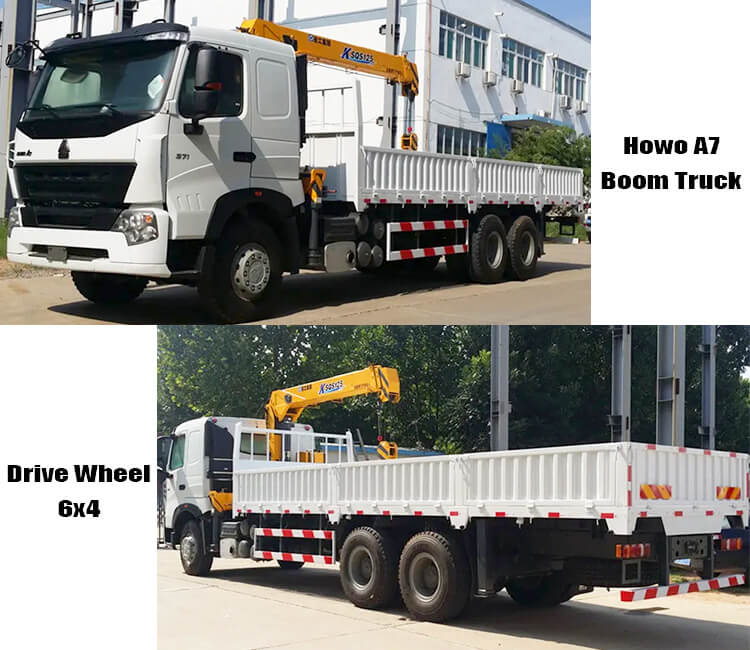

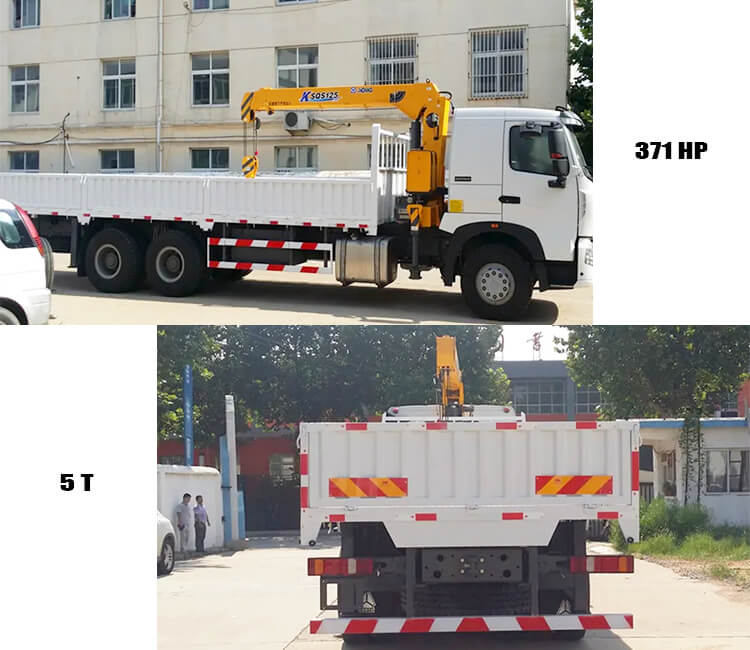

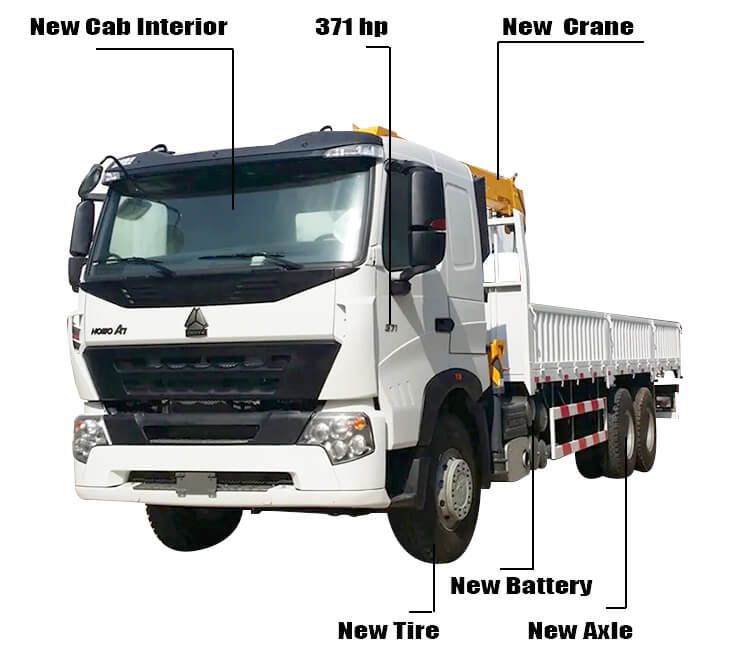

Sinotruk Howo A7 6x4 Used Boom Truck for Sale in Congo
Sinotruk Howo A7 6x4 Used Boom Truck for Sale in Congo
Model: Used A7 6x4 Howo Boom Truck
Model: ZZ1257N5847N1
Cabin: A7-W Long Cabin
Engine: WD615.47
Horse Power (Hp/rpm): 371/2000, Euro II Emission Standard
Max.Torque (Nm/rpm): 1460/1200-1500
Displacement (L): 9.726
Transmission: HW19710,
Front Axle: HF9,
Driving Axle: HC16Option: 4.42
Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer;
Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System: ZF8118
Tire: 12.00R20
Fuel Tank Capacity (L): 400L Diesel Tank
Kurb Weight (kg): 13,400
Loading Capacity (kg): 27,600
Gross Vehicle Weight (kg): 41,000
Overall Dimension(L*W*H)(mm): 10200×2500×3700
Body Dimension(L*W*H)(mm): 8500×2300×600
Model: SQS125 (SQ5SK3Q)
Max Lifting Moment: 12.5 tm
Max Lifting Capacity: 5000 kg
Max Oil Flow of Hydraulic System: 32 L/min
Rated Pressure Of Hydraulic System: 18 Mpa
Oil Tank Capacity: 90 L
Rotation Angle: (360°)All Rotation
Crane Weight: 2170 Kgs
Installation Space: 900 mm
Wheelbase(mm): 5825+1350
Max. Speed (km/h): 90
1. Determine the weight of the cargo that is usually carried in your work scenario. If the main lifting of small goods, choose the small lifting capacity of used sinotruk boom truck for sale in Congo, if often need to lift heavy goods, Sinotruk howo second hand crane trucks for sale require larger lifting capacity.
2. Operate used sinotruk boom truck for sale in Congo for various action tests to check whether the boom's expansion, amplitude, and rotation are smooth, and whether there is a lock or abnormal sound. Test the lifting and descending action, observe whether the hoisting machine is working normally, and whether the wire rope is arranged neatly.
3. Consider whether the after-sales service network of used sinotruk boom truck for sale in Congo is perfect. Good after-sales service ensures that the crane can be repaired in time when it fails, reducing downtime. Find out whether the brand has a local after-sales service point, the technical level of maintenance personnel and the timeliness of spare parts supply.
4. The required working radius and lifting height are determined according to the size of the working site and the location of the lifting goods. If the working area is narrow, you need to choose a small working radius but flexible operation used sinotruk boom truck for sale in Congo; If it is necessary to lift high loads, ensure that the crane has sufficient lifting height. For example, hoisting operations in narrow urban streets may require a crane with a working radius of about 8 meters; On large construction sites, it may be necessary to lift the used sinotruk boom truck for sale in Congo at a height of more than 20 meters.
