The tank body structure of used aluminum fuel tanks for semi trucks can also disperse stress, enhance the strength of the tank body, and reduce the risk of the tank body breaking due to bumps, vibrations and other factors during transportation.
Used howo fuel tanks for semi trucks can be divided into carbon steel tanks, stainless steel tanks, and aluminum alloy tanks.
Carbon steel tanks are a common material with high strength and good corrosion resistance, and can withstand certain pressure and weight. The cost is relatively low and the manufacturing process is relatively mature.
Stainless steel tanks have good corrosion resistance, can effectively resist the erosion of chemical substances in oil products, are not easy to rust, and have a long service life. The surface of stainless steel is smooth, easy to clean and maintain, and will not pollute the oil products. The cost of stainless steel tanks is high and the price is relatively expensive.
The used aluminum fuel tanks for semi trucks made of aluminum alloy are light in weight, which can reduce the overall weight of the vehicle and improve the vehicle's load capacity and fuel economy. used howo aluminum fuel tanks for semi trucks aluminum alloy has good thermal conductivity, and the heating and insulation effect of oil products is better in cold weather. used howo aluminum fuel tanks for semi trucks aluminum alloy also has good corrosion resistance and is suitable for the transportation of various oil products.
Used Howo Aluminum Fuel Tanks for Semi Truck In Namibia - The tank body of used aluminum fuel tanks for semi trucks can make the liquid flow more smoothly inside, reduce the impact of the liquid on the tank body, and improve the stability of the tank body.
Used Howo Aluminum Fuel Tanks for Semi Truck In Namibia - The tank body of used aluminum fuel tanks for semi trucks is usually equipped with multiple wave-proof partitions to reduce the fluctuation and shaking of oil products during transportation, prevent the oil products from exerting excessive impact on the tank body, and ensure the stability of used aluminum fuel tanks for semi trucks.
Used Howo Aluminum Fuel Tanks for Semi Truck In Namibia - The manhole cover of used aluminum fuel tanks for semi trucks is on the top of the tank body, which is the passage for personnel to enter the tank body for inspection, cleaning and other operations. The manhole is usually equipped with a sealing cover to ensure the sealing of the tank body.

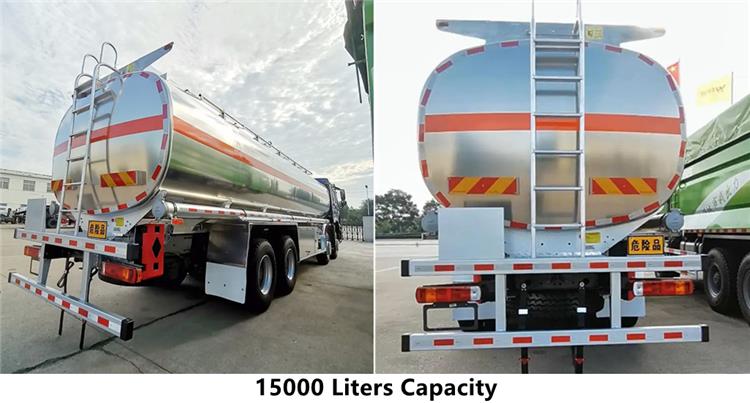

Tank volume: 15000 L
Chassis: HOWO
Overall dimension(mm): 11150*2500*3350
Tank dimension(mm): 8400x2450x1650
Wheelbase(mm): 1900+4160+1350
Rated load weight(Kg): 14195
Drive type: 8*4
Curb weight(Kg): 10805
Fuel type: diesel
Axle No.: 4
Emission standard: Euro 2
Cab seats(person): 2
Transmission: 9-speed gearbox
Approach/departure angle(°): 20/18
Tires No.: 12+1 spare tire
Axle load (Kg): 7000/18000
Tire specification: 12R22.5 Tires
Front/rear hang(mm): 1040/1647
Max speed(km/h): 80
Front/Rear track(mm): 1503/1485
Steel spring number: 6/6+5
Used aluminum fuel tanks for semi trucksAluminum alloy is lighter than steel, which helps improve load capacity and fuel efficiency. Used howo aluminum fuel tanks for semi trucksAluminum alloy is not easy to rust, suitable for transporting corrosive liquids such as oil, and prolongs service life.
Used howo aluminum fuel tanks for semi trucksThe maintenance cost of aluminum alloy materials is relatively low, and it is easier to clean and maintain. Used howo aluminum fuel tanks for semi trucksThe strength and toughness of aluminum alloy make tank trucks safer in collisions and reduce the risk of leakage. Used aluminum fuel tanks for semi trucksAluminum alloy materials can be recycled, which is in line with the concept of sustainable development.

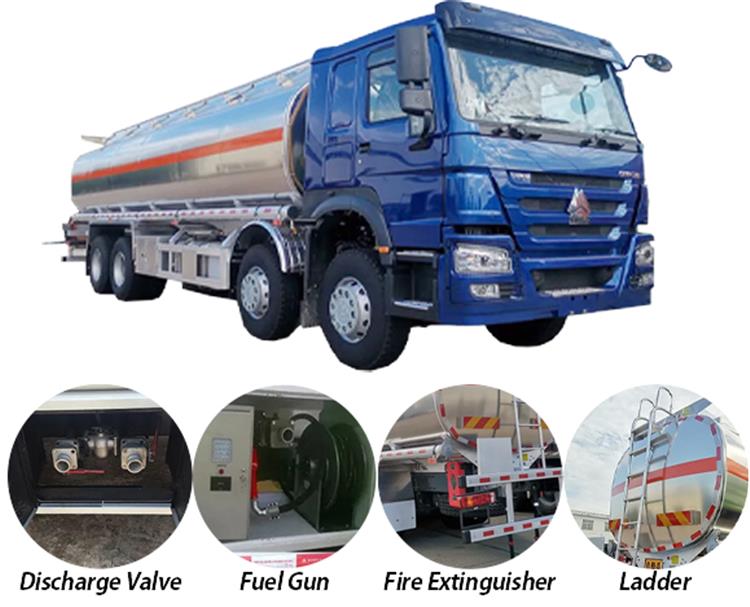

The used aluminum fuel tanks for semi truck breathing valve is installed on the top of the tank to adjust the air pressure balance inside and outside the tank to prevent the tank from being deformed or ruptured due to excessive or insufficient internal pressure. When the oil in the tank evaporates or the temperature changes, the breathing valve can automatically adjust the air pressure in the tank.
The used howo aluminum fuel tanks for semi trucks seabed valve is located at the bottom of the tank and is the control valve for the oil to enter and exit the tank. The seabed valve has good sealing and reliability and can prevent oil leakage. In an emergency, the seabed valve can be quickly closed to cut off the supply of oil.
The discharge port is set on the side or bottom of the tank to discharge the oil in the tank. The discharge port is usually equipped with valves and pipes to control the discharge speed and flow of the oil.
Used aluminum fuel tanks for semi trucks are used to extract or inject oil from the tank, and are the key components of used aluminum fuel tanks for semi trucks to achieve the functions of refueling and unloading. The type and power of the oil pump will vary according to the specific needs of the tank truck.
Engine:
The engine is the core component of the used howo fuel tanker truck, which converts the chemical energy of the fuel into mechanical energy to provide power for the used howo truck price. During the warranty period, if the engine has manufacturing defects, such as excessive wear of the piston ring, poor valve sealing, crankshaft damage, etc.,
TITAN will repair or replace it in accordance with the warranty terms. If the engine has power reduction, abnormal vibration, etc. due to problems with the piston manufacturing process, you can enjoy free repair service as long as it is within the one-year warranty period.
Gearbox:
The gearbox of used fuel tankers is used to change the speed and torque output of the engine to adapt to different driving conditions. Common gearboxes include manual gearboxes and automatic gearboxes. During the warranty period, problems such as gear wear inside the gearbox, shift solenoid valve failure, and gearbox oil leakage can be guaranteed.
The shifting setback of the automatic gearbox of used fuel tankers for sale is serious. After inspection, it is found that the solenoid valve is faulty. If it is within the one-year warranty, the relevant parts can be repaired or replaced free of charge.
Axle:
The axle is an important part of the transmission system of the used howo fuel tanker truck. It is responsible for transmitting power from the gearbox to the wheels and bearing the weight of the used howo fuel tanker truck and various forces during driving. If the axle has quality problems such as bending, breaking, and bearing damage, it can be handled within the one-year warranty period.
For example, during the normal driving of the vehicle, the axle breaks due to material defects, which can be solved through the warranty.
