The braking system of the used saic hongyan truck head has excellent performance. The used hy truck is equipped with the Fast self-developed FH400 hydraulic retarder, and the maximum downhill braking torque is up to 4000N・m, which can effectively ensure the safe operation of the vehicle on long downhill sections and reduce the wear of the brake system.
Adopting advanced engine technology, low wind resistance design, etc., Hongyan tractor performs well in fuel or gas consumption, which can save users a lot of operating costs.

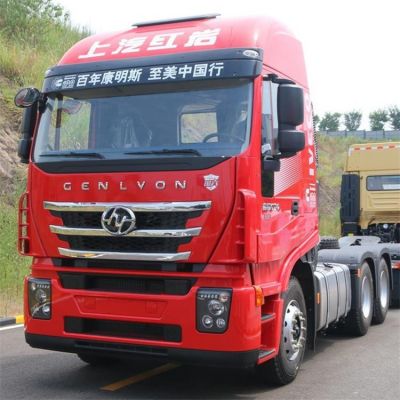

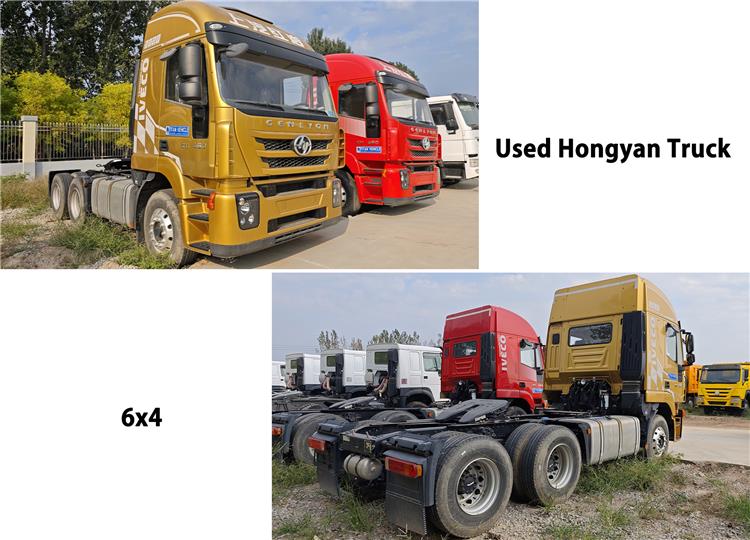

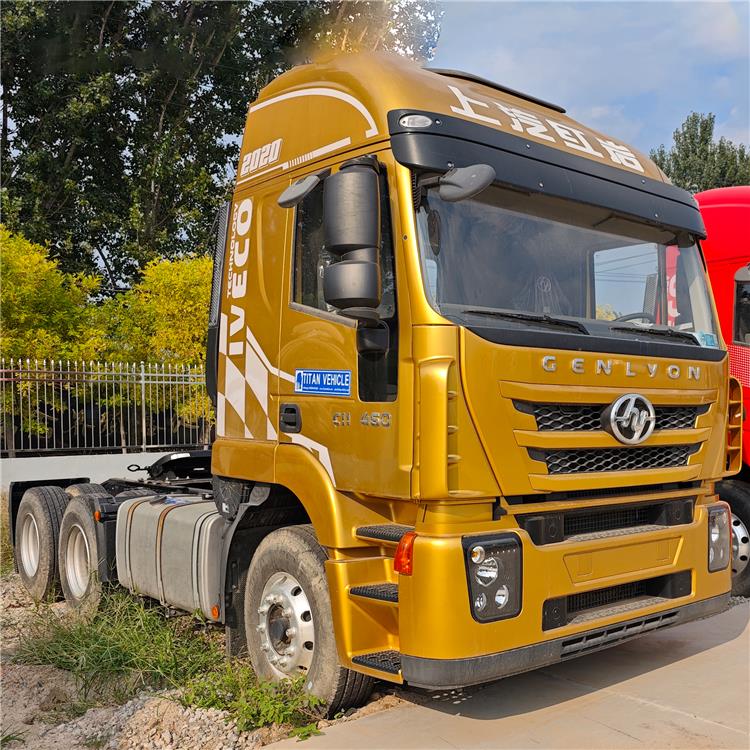

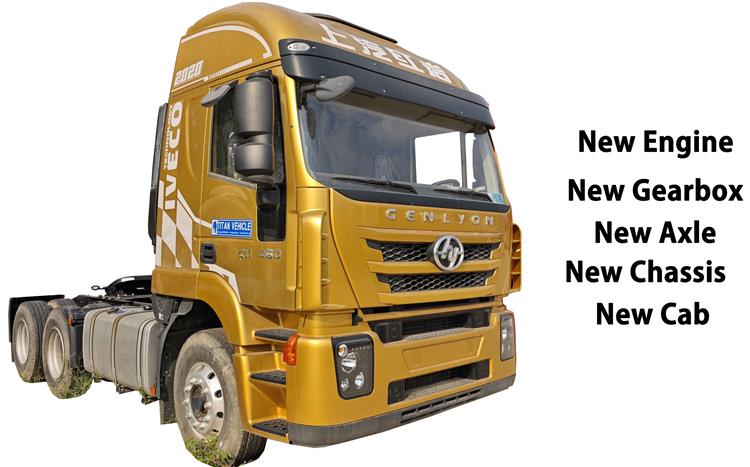

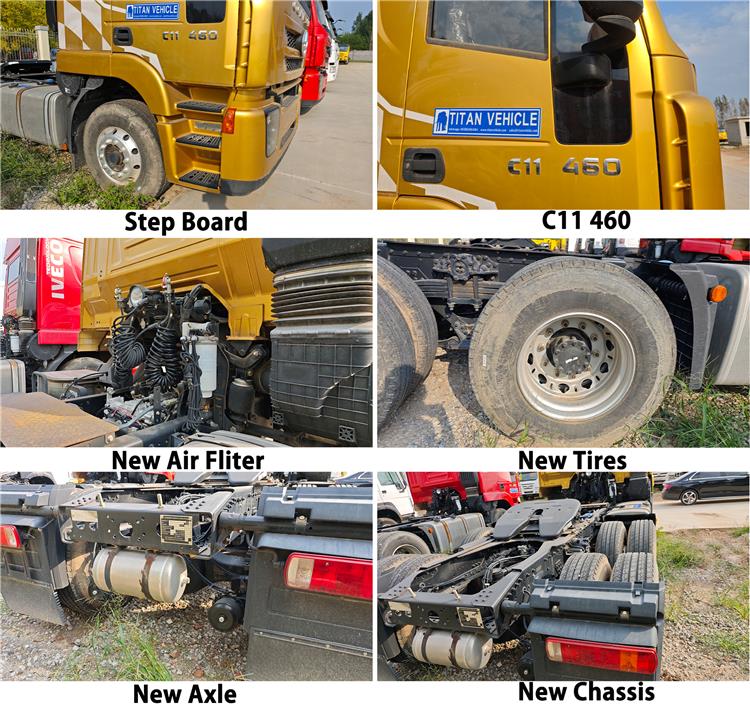

Used Saci Hongyan Truck Head 6x4 - Hy Truck
Used Saci Hongyan Truck Head 6x4 - Hy Truck
Used Saci Hongyan Truck Head 6x4 - Hy Truck
Driving type: Left Hand Driving
Overall Dimension(LxWxH): 6718*2500*3797
Wheel base(mm): 3225+1350
Curb weight(kg): 8270
Traction weight(kg): 40000
Front overhang/rear overhang (mm): 1418/725
Approach angle/Departure angle: 27/47
Engine model: made in China
C13.390(F3BEE681C*Z)
Bore X stroke (mm): 135mm/150mm
Min rate of consuming fuel(g/(kw.h)): 188g/kW.h
Max power(kw/rpm): 390HP/286kW
Emission Standard: EURO III
Fuel tanker(L): 400 Al alloy fuel tank
Clutch: D430 diaphragm type
Gearbox: Fuller (Fast)
Model: 12JSD220TA
Shift mode: 12 forward speeds; 2 reverse speeds
Frame: 940-780mmx305mmx8mm
Front axle: 7T Front non-driving steering axle
Rear axle: 16T H6A double reduction driving axle, inter-wheel differential lock
Ration:4.42
Tyre: 12R22.5 Radial Tire
Suspension: Leaf spring type
Used hy truck is equipped with a variety of high-performance engines, including Weichai WP15NG series natural gas engines, SAIC V13T LNG engines, Hino engines, etc., with strong power output to meet the transportation needs of different users. The Weic WP15NG series natural gas engine used in the saic hongyan has a maximum horsepower of 590 and a maximum torque of 2600N・m. It can easily cope with various working conditions such as mountain climbing and plain express transportation. It has fast starting and sufficient power reserve when driving at high speed.
The saic hongyan truck head is equipped with gearboxes from well-known brands such as Fast, such as the Fast Zhixing 16-speed AMT gearbox, which is standard for high-horsepower models. It has a highly integrated structure, perfect and smooth shifting logic, and can be deeply calibrated according to China's complex road conditions, further optimizing power transmission and improving the fuel economy and transportation efficiency of the vehicle.
The cab of the used hy truck is tall and spacious, with an internal height of up to 2100mm, providing the driver with ample head and leg space, and not easy to get tired after long-term driving. Used saic hongyan The door adopts double sealing strip design, which has better sound insulation effect, can effectively reduce external noise interference, create a quiet and comfortable driving atmosphere for the driver, and improve driving comfort and concentration.
The components of the used saic hongyan truck head are highly reliable and durable, and the maintenance cost of the vehicle is relatively low. The used hy truck is equipped with advanced intelligent auxiliary systems such as video monitoring, blind spot monitoring, anti-collision warning, lane departure warning and other functions, which improves the safety and convenience of driving. At the same time, the vehicle is also equipped with intelligent configurations such as the "Smart Energy Saving" intelligent control system, which can realize energy-saving driving cloud computing, save gas consumption, and improve operational efficiency.
Used saic hongyan truck head has a variety of models and configurations to choose from, which can meet the needs of different users in various transportation scenarios such as coal transportation, sand and gravel transportation, long-distance high-speed standard load, etc.
