80 ton fence cargo semi trailer has independent triangle reinforcement on the outriggers to prevent displacement and damage when connected to the tractor
80 ton fence cargo trailer uses a standard 13-ton axle, which increases the overall braking performance of the 80 ton fence cargo semi trailer. The 80 ton fence cargo semi trailer uses a 16-ton brake pad, which will increase the braking performance by more than 2 times.
The bumper design used by the 80 ton fence cargo trailer is 4mm thick, which will increase the bumper's anti-collision ability and avoid damage to the steel structure during an accident
80 ton fence cargo semi trailer uses all thickened national standard cables, and all connection points use waterproof quick connectors, which are more durable and more user-friendly. The electrical circuit is uniform, concise and clear.

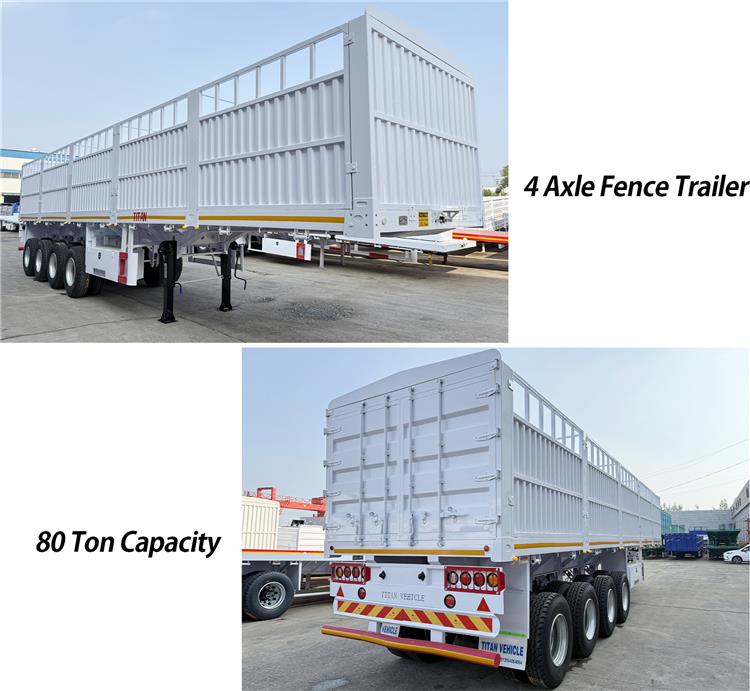

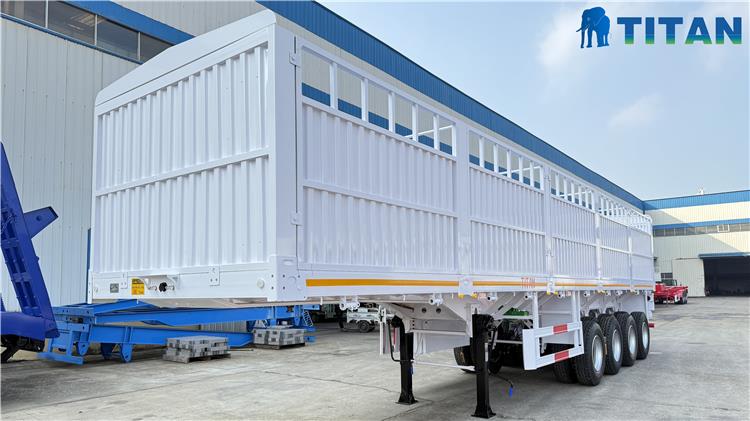

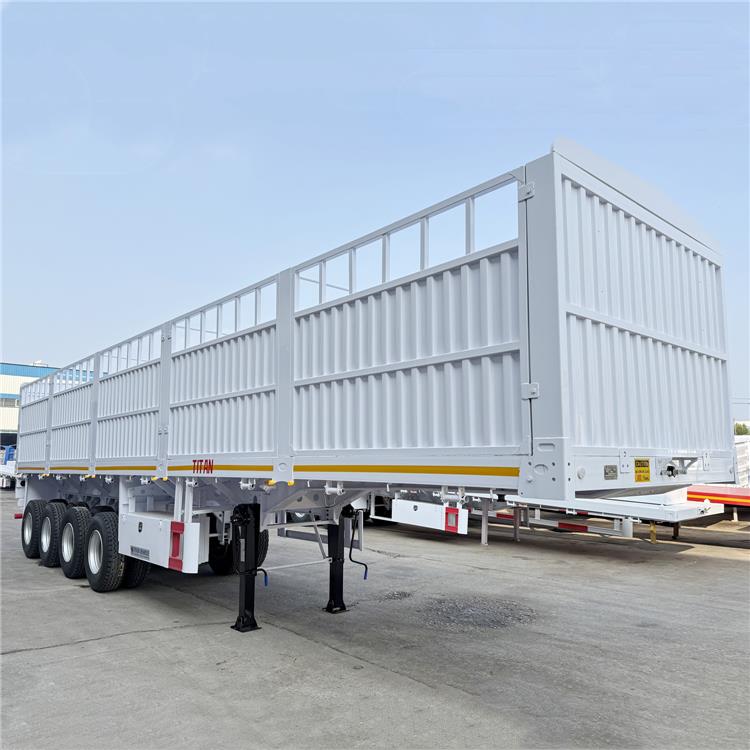

4 Axle 80 Ton Fence Cargo Semi Trailer for Sale In Sudan
4 Axle 80 Ton Fence Cargo Semi Trailer for Sale In Sudan
4 Axle 80 Ton Fence Cargo Semi Trailer for Sale In Sudan

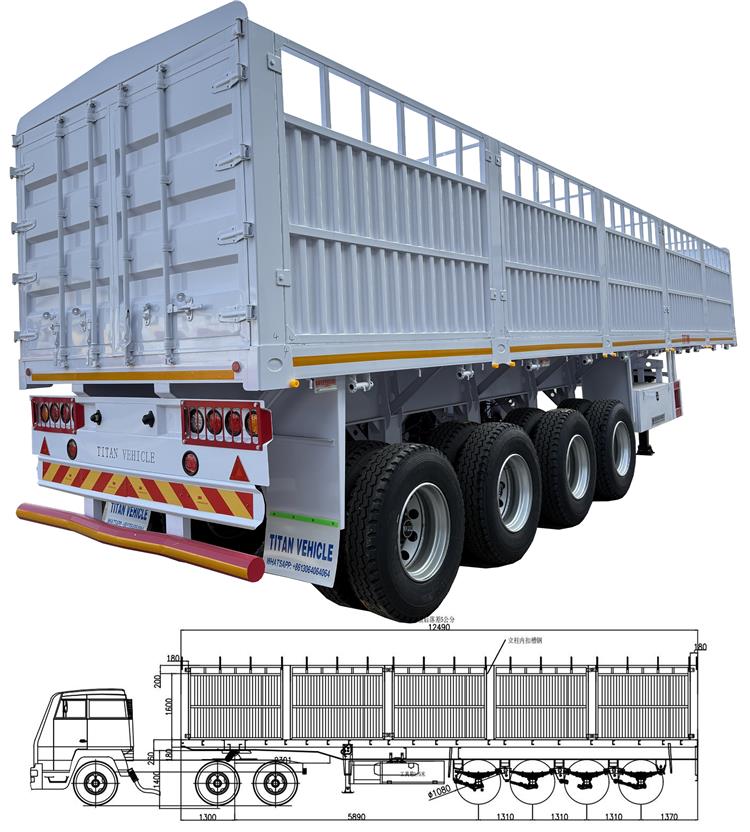

Overall dimension：12490mm * 2500mm *3350mm
Loading capacity: 80ton
Axles：4 axles
Sidewalls height: 1800mm

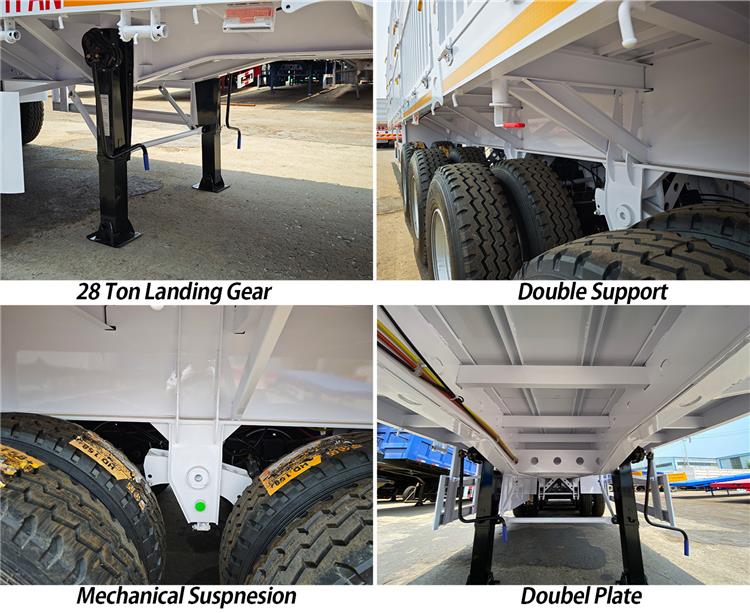

Suspension: Heavy duty mechanical suspension

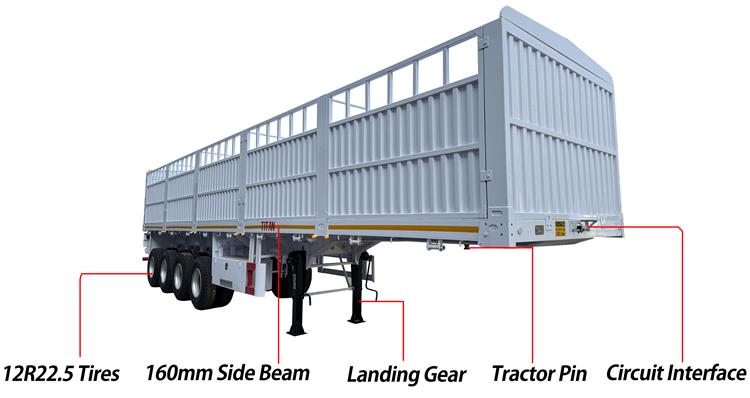

Tire: 16 units
Landing gear: TITAN Brand
Brake system: WABCO
Electrical system: 24V, LED lights
In order to ensure the flatness and service life of the bottom plate, TITAN uses 6 crossbeams to reinforce the chassis of the 80 ton fence semi trailer, which not only makes the frame of the 80 ton fence cargo trailer stronger, but also makes the 80 ton fence cargo semi trailer platform never collapse.
The fence of the 80 ton fence cargo semi trailer is made of thickened high-strength steel, using 5*5 high-strength square tubes, the thickness of the fence is 1.5mm, and reinforced cross ribs are added in the middle. The thickened fence can ensure that the 80 ton fence semi trailer will not expand or bend in the long-term use.
The 80 ton fence cargo trailer has a detachable cross tie rod inside the box, which is on each column, and is pulled horizontally to the column to prevent the box and the column from deforming. And it is a detachable design, which is easy to operate and does not affect loading and use.
The 80 ton fence cargo semi trailer uses an 18cm wide design for the columns, with fixing screws under the columns to prevent the columns from moving, reduce wear and make them more durable.
The 80 ton fence cargo semi trailer also uses a customized thickened suspension with a thickness of 8 mm and a diameter of 70 mm. The front, rear, left and right sides of the suspension have added reinforcement designs. In addition, our suspension is directly welded on the beam, which has higher requirements for production technology, but it can avoid welding at the welding point when driving under harsh road conditions, providing better stability and durability, and ensuring the use of the 80 ton fence cargo semi trailer under harsh road conditions
